Description

Ecohog are a family owned equipment manufacturer located in Co Tyrone, Northern Ireland. Operating on a global scale Ecohog have over 30 years’ experience supplying air and metal separation equipment to the waste and recycling sector. The team’s knowledge of the industry has enabled the company to develop our skills in design concept finding solutions to waste sorting problems. This has lead us to develop our sought after mobile Ecohog density separators, HogMag metal separation equipment, and auxiliaries equipment, with a range of exciting complementary equipment currently under development.

Ecohog have distribution networks worldwide offering customers a great opportunity to view products. If you are interested in viewing a product or meeting with a distributor in your area please email info@ecohog.com for more information.

The Ecohog Product Range:

HogMag Eddy Current Separator Range

Ecohog Windshifter Range

AirHog Suction System Range

HogMag Eddy Current Separator Range

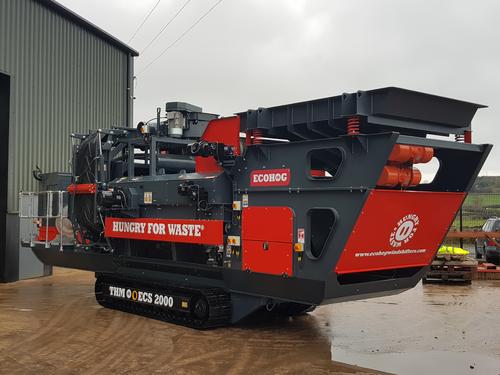

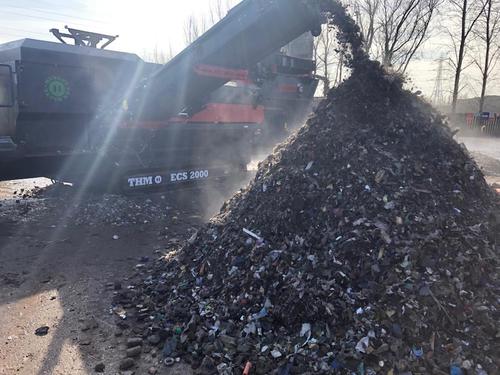

The HogMag Eddy Current Separator range consists of 2m and 1.5m ECS tracked, static and site mobile units including the most sought after THM ECS-2000 tracked ECS with a proven worldwide track record. The HM ECS-1500 site mobile HogMag has hook loader skid mounted frames providing flexible use and can be quickly relocated on and around site.

The HogMag Eddy Current Separator unit is designed for the recovery of ferrous and nonferrous metals from residual applications and incorporates Eriez magnetics components. In many applications customers identified the need for metal recovery in addition to the air separation therefore the products are complementary to each other as well as existing products in the marketplace such as trommels, screens and shredders. The 2m ECS option is suitable for waste processors with high volumes of waste material with the capability of processing up to 40TPH. The unit can be fitted with an EH-81 Airhog Suction System for the removal of superlight fractions from the material (patent pending technology).

Ecohog Windshifter Range

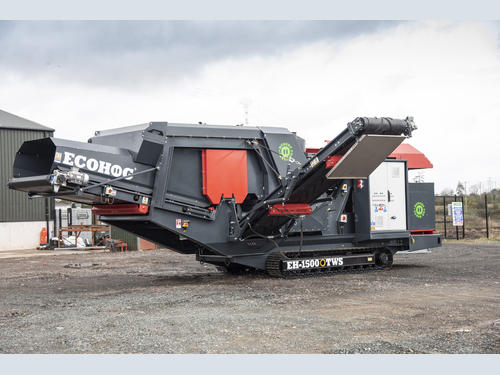

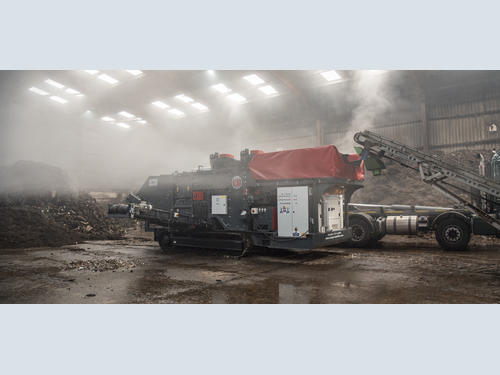

The Ecohog Windshifter range is available in both tracked and static versions including the EH1500-TWS and EH1500-SM1 with a range of auxiliaries available.

The unique Ecohog Windshifter technology enables customers to incorporate air separation into new or existing processing configurations tackling difficult contaminates in the materials. The technology provides an alternative to manual sorting which is both exhausting and expensive. The Ecohog Windshifter range is available with an onboard AirHog suction fan to achieve a 3 way split in fractions including superlight, light and heavy. This unit has various features that position it most desirable in the marketplace.

AirHog Suction System Range

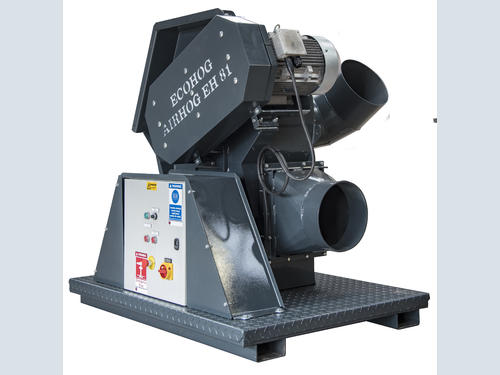

The EH-81 Airhog Suction System is a stand-alone Suction System for the removal of super light contaminants. This unit is ideal for waste processors whose lights contamination problem does not warrant the investment of a Windshifter as it can be controlled with an Airhog. The beauty of the AirHog is it can be incorporated onto any conveyance system to reduce or eliminate the ‘lights’ problem.

In addition to the EH-81 Airhog, the unit is now available as a self-powered HSB-81 Airhog combining a 20kVA generator with the existing EH-81 Airhog heavy duty suction fan design.  Including a power module to the HSB-81 Airhog makes it an ideal machine for hire/demonstration and remote working applications.

The Airhog fan technology incorporates a frequency controlled heavy duty fan, for the removal of light and superlight containments such as paper, plastic and foil producing a more profitable end product. The extraction hood can be designed to fit any conveyor belt removing low density materials and allowing heavy density materials to continue to its final destination.

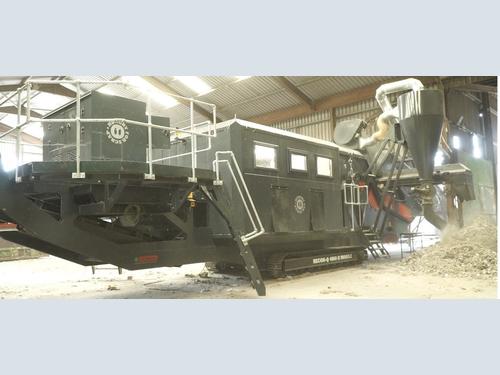

Recon-Q

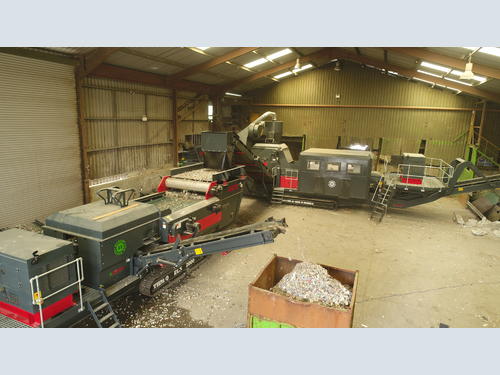

The world's first mobile scrap recovery downstream system. The Recon-Q aims to provide a solution that will maximise ultimate recovery of the ‘forgotten’ valuable metals and waste. Focusing on the separation of non-metal fraction contaminants enables the scrap metal processor to increase the commodity value of each core product.  The overall scrap metal solution combines mobile hammer mill shredding, Ecohog’s latest product the Recon-Q Mobile Ferrous Separation System and longstanding Hogmag tracked ECS (Eddy Current Separator). The Recon-Q provides ultimate cleaning of the ferrous scrap and waste residue and has the capacity for example to shred full cars, used aluminium beverage cans, and city scrap/ household white goods. Therefore improving the scrap processor’s output by ensuring maximum sorting and recovery of all waste elements of value, thus saving money and increasing profit.



Become an Ecohog Distributor…

Ecohog are currently recruiting distributors globally to join our Network. If you are interested in becoming a Distributor get in touch!
