EDGE VS420 – HUB4 Shredder Focus

With decades of knowledge in the design, manufacturing and installation of mobile waste shredders, it is no surprise that EDGE Innovate’s VS420 twin shaft shredder has quickly gained a reputation as a world class shredder. With many units already installed in the UK; many British waste management companies have been quick to recognise the operational benefits of the VS420 with its capabilities and versatility being proven in wide range of applications from municipal skip waste to wood waste.

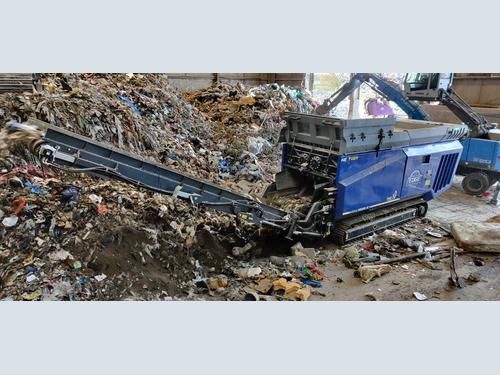

The EDGE VS420 is a high capacity, high torque twin shaft waste shredder that is ideal for the processing of a large array of materials. Developed for ultimate versatility and high resistance to contaminants, the EDGE VS420 allows operators to select from several customisable shredding programmes and chamber configurations to suit their exact application. An intelligent operating system which incorporates tramp metal protection provides the ultimate protection from contaminants and prevents asset damage.

At the heart of the VS420 slow speed shredder are twin synchronised, high torque shredder shafts which can be customised to suit a customer’s exact application and desired product piece size. EDGE’s twin shaft design provides exceptional material intake, ensures less wear, promotes self-cleaning and prevents material wrapping even in the toughest of applications.

Model

EDGE VS420

Weight

29,200KG

Engine Emission

STAGE V / TIER 4 FINAL

Rated Power

310Kw (420HP)

Nominal Torque

240,000Nm

Rotor Length

2m

Number of Rotor Knives

26-76

Screen size

50mm – 200mm

Screen Area

Variable
