Greater efficiency, less wear and higher productivity with our new QJ341+

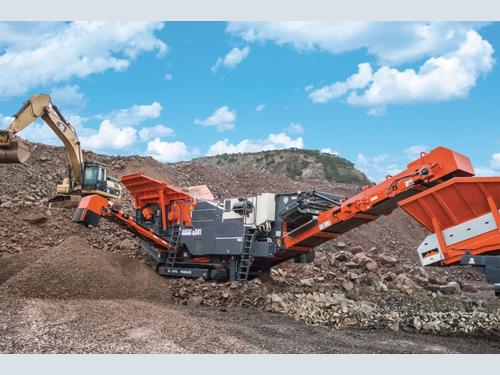

Sandvik Construction Mobile Crushers and Screens will be taking the opportunity of Hilhead 2016 to introduce a new addition to the 341 jaw crusher range with the launch of the new QJ341+. This new model incorporates a double deck pre-screen as standard, broadening our offering of the bestselling QJ341 mobile jaw crusher in order to meet customer requirements.

At this year’s event, we’re excited to introduce our latest addition to the crushing range.  The QJ341+  comes equipped with a double deck pre-screen which features a stepped grizzly and a highly aggressive independent vibrating feeder.  This has been designed to work with the most difficult and robust material and enables the removal of a large amount of fines, resulting in greater efficiency, higher productivity and less wear on the crusher. The QJ341+ will therefore be particularly effective in quarrying applications where a high proportion of fines in the feed material are found, as the new pre-screen ‘screens out’ this material prior to entering the crushing chamber. Test results have already demonstrated increased productivity by as much as 38% in certain applications.

To complement the pre-screen, we have designed a new telescopic natural fines conveyor, with a discharge height of 3.1m / 10’3” to deal with the increased flow of pre-screened material. The dirt chute has been designed with a steeper angle to enable a faster transfer of material, whilst also increasing the ability to deal with sticky material. The three position dirt chute allows all material passing the pre-screen grizzly to be diverted onto either the main conveyor or the natural fines conveyor.  In the middle position it allows a screened product to be produced out from the fines conveyor. All of this is done by positioning the three way chute without removing any media from the pre-screen.

Our QJ341+ model will include the same customer-focused characteristics as the standard model, including: hydraulically adjustable CSS setting, reversible jaw and hydraulic drive enabling the crusher to start under load, thereby maximizing uptime.  It also has features purposefully designed to provide you with total control and peace of mind, such as the Sandvik PLC control system and control screen.

Other benefits of the QJ341+ include a new improved self-locking hopper for quick and safe set-up from ground level. Improvements have also been made to the main conveyor to reduce drag. The QJ341+ has also been fitted with highly efficient bent axis and radial piston motors throughout, which will reduce hydraulic flow rates and increase fuel economy as well as improving durability.

Key features include:

  • Double deck pre-screen for removal of fines
  • Fitted with a choice of CAT or Volvo emissions compliant engine
  • Self-locking hopper, for quick and safe set-up from ground level
  • New low drag main conveyor for maximum power transfer and efficiency
  • Full PLC control system and color screen allowing visual data output of all plant operating parameters
  • Hydraulically raise and lower facility on the main conveyor

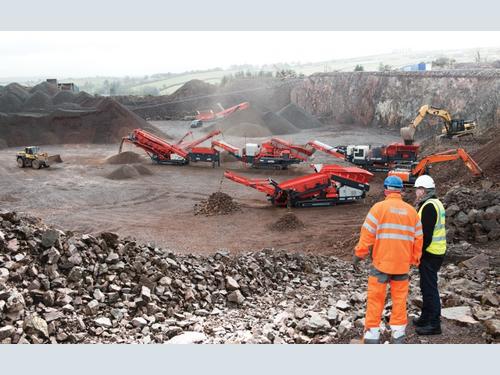

We are looking forward to demonstrating the outstanding performance of the new pre-screen at Hillhead.  Also on demonstration, at regular intervals throughout the day will be the following mobile crushers and screens:

The Sandvik Construction stand will be located at: Stand J1

We look forward to seeing you in Buxton!
