Introducing the new Liebherr LH 110 C High Rise Port Litronic material handler

An all new custom-designed port material handler available in 2017

  • LH 110 C High Rise Port available worldwide with exhaust emissions Stages IV / Tier 4f
  • Completely redesigned attachments for powerful work cycles when handling bulk and general cargo

Liebherr presented the LH 110 C High Rise Port Litronic material handler at bauma 2016. The new Port series handlers complement the existing Industry and timber product lines. The LH 110 High Rise Port is available in wheeled, crawler or gantry undercarriage variants with standard or high-rise cab configuration. The LH 110 High Rise Port handler’s remarkable power capacity and low fuel consumption sets new standards in terms of efficiency.

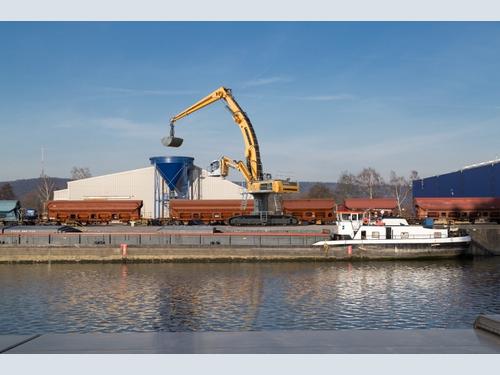

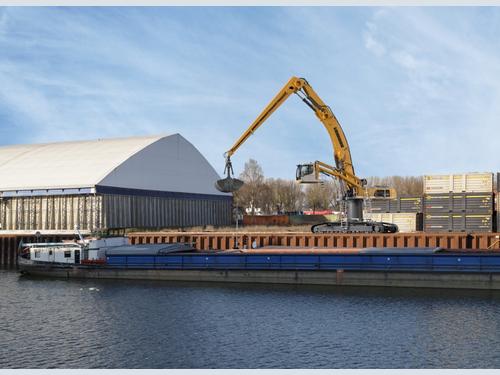

The LH 110 C High Rise Port Litronic, showcased at bauma 2016, is designed for quick and efficient handling of bulk and general cargo in ports. Its configuration includes an angled 13.0 m boom and a straight 12.0 m stick. The stick, with hydraulic quick-coupler, in combination with the Liebherr multi-coupling system for hydraulic lines, gives the machine the necessary flexibility for diverse port applications. The configuration also includes a Liebherr grapple model GMZ12, which is for bulk material and has a capacity of 8.0 m³. Other highlights are the hydraulic double-pivot cab, with infinitely adjustable height and forward movement, and sliding doors with access at ground level. In addition, the LH 110 C High Rise Port features a robust crawler undercarriage with extra tower height of 2.0 m and the patented energy recovery system (ERC) as standard.

High system power and intelligent control
The Liebherr LH 110 C High Rise Port is powered by a 6-cylinder Liebherr diesel in-line engine designed to meet Stage IV / Tier 4f emission standards. The LH 110 High Rise Port has an engine power of 300 kW / 408 HP and, thanks to the ERC system, is able to deliver a total system power of 431 kW / 586 HP. With the newly-designed configuration, the LH 110 C High Rise Port achieves load capacities of up to 10 tonnes with a range of over 20 m. The working radius of the machine is up to 27 m.

The new LH 110 C High Rise Port handler combines intelligent electronics with sensitive hydraulics, thereby ensuring both extremely precise, finely-controlled work and fast, powerful movements. The sophisticated machine control system ensures optimal adaptation of the hydraulics for the specific operation. Both speed and strength are there when they are needed.
With intelligent machine control, the interaction of the drive components is optimised in terms of efficiency. The Liebherr Power Efficiency (LPE) system enables the machine to combine maximum performance with the lowest possible fuel consumption.

Fuel consumption is further reduced thanks to the award-winning ERC system so that total fuel savings of up to 30 per cent are possible with a simultaneous increase in handling capacity compared to the LH 110 C High Rise Port’s predecessor, the R 974 C Litronic.

Operator comfort for focused and productive work
The cab of the new LH 110 C High Rise Port material handler offers optimal operator conditions for productive and focused work. Operator comfort is enhanced by the ergonomic design featured on the control consoles and operator's seat, along with the excellent panoramic view and low noise levels.

Standard features include comfort seat, proportional left and right control and joystick steering for mobile machines, which boosts the comfort of the operator. Large cab windows, overall hydraulic cab height, as well as rear and side monitoring, offer the best possible view of the working area at all times thereby ensuring that safe handling of the machine is always guaranteed.
