Kleemann | Impact crusher and screening plant impress in the Istanbul Financial Centre (IFC)
Kleemann | Impact crusher and screening plant impress in the Istanbul Financial Centre (IFC)
MOBIREX MR 130i EVO2 and MOBISCREEN MSS 802i EVO in urban operation

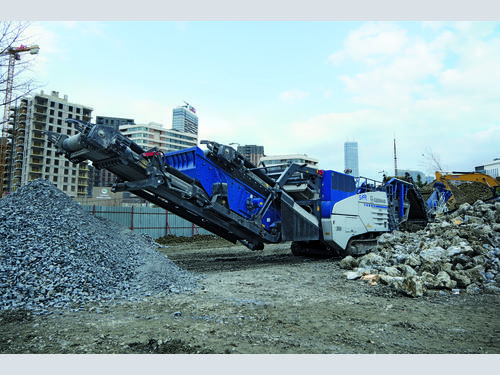

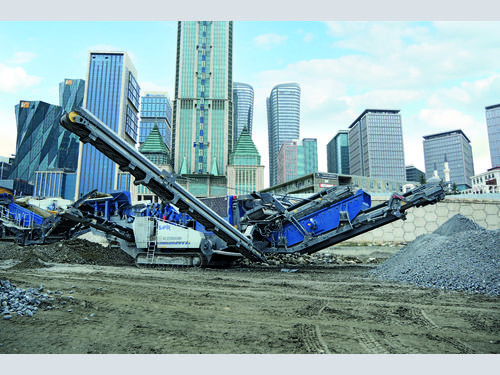

Using the mobile impact crusher MOBIREX MR 130i EVO2 and mobile scalping screen MOBISCREEN MSS 802i EVO, material is being produced for concrete production and road substructures in the centre of Istanbul.

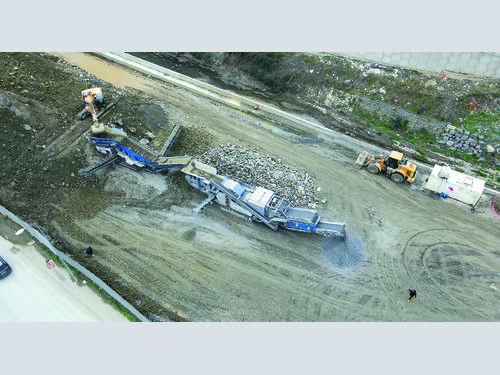

The two Kleemann plants will be in operation here for around 1.5 years and will process approximately a million tons of excavated material on a building site. At this location, in the middle of a dense development, flexibility is required, both in view of the special surroundings and the material. The excavated material is processed directly on site with the two Kleemann plants and some of it is combined with other materials.
Adapting to changing conditions
Depending on the weather, the 0-500/600 mm feed material is at times wet and muddy, at other times dusty and dry. The solution for these changing conditions: In wet weather, the MOBIREX MR 130i EVO2 impact crusher is preceded by the MOBISCREEN MSS 802i EVO scalping screen. It loosens the sludgy material, screens it coarsely and prepares it for feeding to the impact crusher. The first step is not required in dry conditions. The excavated material can then be transferred directly to the impact crusher.

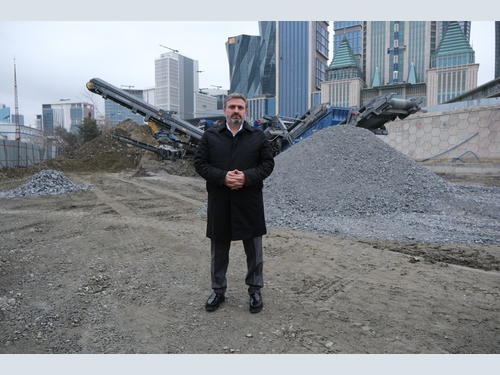

“It has been shown that this combination produces excellent results,” says Feyzullah Kahraman, Managing Director of the building company Safir Proje who operate the building site. “We produce grain sizes of 0/30 and 0/60 and, depending on the final product, can achieve an hourly output of 200 to 300 tons with a consumption of 24 litres”, explains the business operator. The quality of the final product also meets the requirements for the cubic material very well.
Efficiency lowers the operating costs
The fact that only one machine needs to be refuelled in dry conditions when the impact crusher is running without prescreening is very cost-effective. This lowers the operating costs. Or the scalping screen can then be used for other tasks on the building site. With its proportionally controlled running gear, the MSS 802i EVO can be moved quickly with short set-up times.
Very pleased with service and handling
The new Kleemann impact crusher was quick and easy for employees to familiarise themselves with thanks to the intuitive SPECTIVE operating concept. The favourable ergonomics and easy access to all relevant parts for service and maintenance make the work more efficient. Overall, the close co-operation between the customer and Kleemann proved its worth for the challenging setting – from consultation at the Göppingen plant to the installation of the system on site.
