Low profile filler accomodates, bulk bags, drums.
When filling bulk bags, full-length forklifting tubes integral to the rear-post fill head allow incremental height adjustments secured with hitch pins to accommodate bags of all popular sizes, from 1000 to 1500 mm tall, and widths to 1150 mm. The filler is equipped with an inflatable bag spout seal, a feed chute dust vent, and a low-profile densification deck that de-aerates material in bags weighing up to two tonnes as they are being filled.
A remote console or wall-mounted panel houses controls to automatically inflate the bag to remove creases, open a flow control valve or start a feed device, and stop the flow of material once a preset fill weight has been gained. The vibratory deck de-aerates and densifies material in the bag at preset set points to create a solid, stable bag, ready for shipment. Once bags are filled, the controller deflates the spout connection collar and releases the loop latches, enabling the operator to remove the palletised bag using a pallet jack or fork truck.

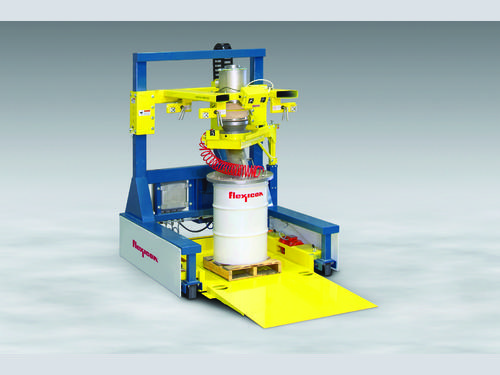

The unit can be switched to drum-filling mode in several seconds by positioning the swing-arm-mounted drum-filling chute under the fill head discharge port. The attachment has an adaptable seal to handle drums measuring up to 570 mm in diameter and 900 mm in height. When filling one drum, initiating a filling cycle delivers a programmed weight of material to the drum. When filling two, three or four drums, the feed chute automatically indexes after each drum is filled, reducing operator involvement to initiating the cycle and removing the palletised drums using a pallet jack or fork truck.
The filler is constructed of carbon steel with stainless steel material contact surfaces, and is available in all-stainless steel finished to industrial, food, dairy or pharmaceutical standards, and with material delivery systems integrated with upstream process equipment or storage vessels.
