New Doosan DL580-5 Helps Great Tew Quarry Meet Demand
Great Tew Ironstone Quarry in North Oxfordshire in the UK has purchased a new top-of-the-range Doosan DL580-5 wheel loader to increase production of Ironstone products from the quarry. The DL580-5 carries huge 14-16 tonne blocks of Ironstone from the quarry face to a new £1 million stone processing plant that has recently begun production at the top of the quarry.
Great Tew Ironstone has a striking brown and blue vein and is only available from this Oxfordshire quarry. The quarried block is often up to 30 tonne, which opens up a wide variety of uses, including building and walling stone, architectural details, mullion windows, copings, quoins and flooring. Smaller quarried block is suitable for rockery stone and one-off garden features. The quarry lies on the historic Great Tew Estate, which always quarried block for its own use and in 2000, the quarry was opened further to satisfy a wider demand for this unique product.
Great Tew is part of Johnston Quarry Group, the largest supplier of quarried and mined block stone in southern England. As well as Great Tew, the Group owns and operates Sarsden Quarry in Oxfordshire, Creeton Quarry and Ropsley Quarry both in Lincolnshire and Oathill Quarry in Gloucestershire. The Group also runs three Bath stone mines. With the wide choice of building stone and masonry products available, the Group supplies over 60,000 tonne of stone block and 300,000 tonne of aggregates per year.
Paul Keyte, Operations Director at Johnston Quarry Group, who is responsible for overseeing the Great Tew, Sarsden and Oathill sites, said: “We are delighted with the boost in productivity provided by the new DL580-5 and the processing plant, which allows us to process up to 100 tonne of stone a day. The arrival of the DL580-5 and the opening of the new plant are both timely and are enabling us to meet a significant increase in demand for our Ironstone products in the UK.”

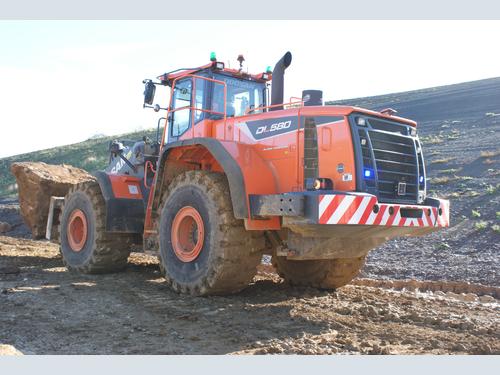

Equipped with specially matched pallet tines, the DL580-5 brings the large blocks from the base of the quarry to the top and along a short road, at the end of which it loads them on to the sawing machines in the processing plant. Previously, the quarry was only able to move blocks weighing up to a maximum of 10 tonne, so the arrival of the DL580-5 has made this a much more efficient process.
Designed for Heavy Lifting
To take on heavy material handling jobs like this, the DL580-5 features robust structural components and an advanced double circuit axle cooling system to provide an ideal solution for heavier work. This ensures the DL580-5 is ideal not only for block lifting in quarries and mines, but also heavy-duty applications in industrial, construction and recycling operations.
The overall size of the DL580-5 is almost the same as the DL550-5, the next model down in the Doosan range, but it has an operating weight of 36030 kg and higher static tipping loads (straight/full turn 40°) of 29700 and 26200 kg, respectively.
In addition, the new model is equipped with a series of features that make the machine extremely reliable and durable. For example, the front structure is more rugged, with greater rigidity and strength. The DL580-5 has reinforced Z-bar kinematics for heavier lifting with few moving parts. This design also helps stabilise the loader, enables rapid bucket movements and keeps the bucket at the right angle position at all times.
The DL580-5 was supplied by Doosan dealer, Filtermech Plant Sales Ltd, based in Wakefield in West Yorkshire, in conjunction with another DL580-5 supplied last year to Creeton Quarry. Filtermech provides back-up for the DL580-5 along with the other Doosan wheel loaders, crawler excavators and articulated dump trucks at Creeton but the DL580-5 and the other Doosan machines at Great Tew are supported by Murley Construction, another Doosan dealer, based more locally at Stourport-on-Severn.
Established in 1959, Murley Construction, has been providing machinery sales and support for over 50 years to the Midlands community. Like Filtermech, Murley represents the full range of equipment from Doosan that also includes wheeled excavators, providing full servicing, repairs, warranty and parts back-up from the company’s modern and well equipped premises, with Doosan-trained technicians and advisors.
Additional Fuel Savings
The DL580-5 is powered by the Scania DC13 6-cylinder engine producing 283 kW (380 HP) of power at 1800 rpm. Providing a generous maximum torque of 1765 Nm at 1300 rpm, up to a 10% reduction in fuel consumption and excellent response, the Scania DC13 engine meets Stage IV emission regulations without the need of a diesel particulate filter (DPF), through the use of cooled exhaust gas recirculation (EGR) and selective catalyst reduction (SCR) after-treatment technologies.
The engine Auto Idle system when activated saves further on fuel costs by lowering the idle level from 950 to 750 rpm – when the operator does not give any input to the steering wheel, arm and bucket for more than 10 seconds (ideal for applications where there is a lot of waiting time such as truck loading which can be up to 8% of the time). In all DL-5 loaders, the Engine Auto Shut Off shuts down the machine after it has been idling for a specified amount of time (3-60 minutes, configurable by the operator via the control panel). This feature saves on fuel and reduces operating costs.
As well as the powerful Scania DC13 Stage IV engine, the DL580-5 also features automatic 5-speed powershift transmission, heavy duty cooled axles, a high comfort cab, smooth and responsive hydraulics and auxiliary hydraulic connections, together providing a solution for the heaviest jobs that need to be done. As with all other Doosan DL-5 wheel loaders, most of these features are standard on the DL580-5 unlike other machines on the market where they are options and many have been developed to optimise fuel efficiency.
High Comfort Cab
The cab demonstrates how Doosan has placed operator comfort at the very centre of its design priorities. Offering generous headroom and an ultra-comfortable, fully adjustable, heated Grammer air suspension seat, the DL580-5 cab features a novel steering column design giving more clearance for the operator’s legs and knees. The steering wheel can also be tilted and moved telescopically to match the operator’s preferred position. Electric joystick steering is incorporated to ensure operator driving comfort and improve productivity.
Many of the new features on the cab in the large DL-5 wheel loaders such as the DL580-5 are aimed at increased safety and visibility in and around the operator’s cab. For example, a new handrail has been installed around the cab roof with three holding points, allowing operators to move very safely all around the cab to clean windows and to perform other tasks.
A new large step and access platform has also been added on the front of the cab and a change in the wiring routing has allowed the horn to be repositioned below the road light. Together these changes ensure maximum safety and confidence, with very safe and faster movements around the cab (without any obstacles) during daily maintenance.
Increased Space and Visibility
The increased space, better visibility and plentiful storage space in the cab allows operators to work for hours without fatigue or discomfort. Meeting ROPS/FOPS regulations, the cab also offers a wide emergency exit (located on the right hand side) to provide fast and easy evacuation in critical situations.
The 5.7 inch full colour LCD panel is suitable for day and night work. The user-friendly monitor has two customisable screen displays to suit the operator’s preference, giving a full readout of machine settings and maintenance data.
The rear-view camera greatly enhances visibility and safety. The screen in the cab shows the operator what the camera sees and includes several lines to help judge distances; it also has other functions, including light intensity control, viewing angle control, language setting and power on/off setting.
The DL580-5 incorporates all of the new safety and ergonomic features recently announced for the other six large Doosan wheel loaders from the DL280-5 to the DL550-5. It also features the latest restyling common to all models in the Doosan wheel loader range. The styling scheme involves a change of colour (from orange to dark grey) for the front lift arm, front frame and front and rear axle components on the machines. The more dynamic curved lines of the new styling are designed to reinforce the robustness and power of the Doosan wheel loader range.
