OQC90 – A new fully automatic quick coupler for large material handling machines.

OilQuick OQC – Quick couplers for material handlers and cranes

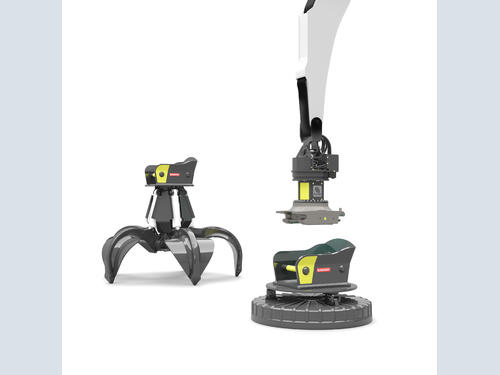

The OQC is an OilQuick suspended quick coupler, which is primarily designed for use on loading and recycling cranes and other handling equipment. Basically, the system consists of an extremely rugged 360° rotator mounted on our fully hydraulic, tried-and-tested quick coupler. The OQC unit is suspended from the handling equipment’s stick.

Using the OQC system you can stay comfortable and safe in the cab while switching lifting hooks, wood chip buckets, clamshell grapples, grapples and magnets etc. All with just a push of a button.

OilQuick are now introducing our largest model – The OQC90!

Designed for the largest material handlers in the world! Same principle as its smaller siblings, but very much stronger. With this new model you can lift up to 68 metric tonnes. The OQC90 has a 100 A electrical swivel connection and up to 4 hydraulic connections. This makes it ideal for large material handlers and harbour cranes.

Why OQC?

  • Lightning fast change of hydraulic, electric and mechanical attachments from inside the cab.
  • Always the right attachment for the job.
  • No staff around the machine during tool changes.
  • Improved safety.
  • Meets all safety standards on the market.
  • Reduce the number of machines on the site.
  • Increased productivity = Increased profitability.
  • Minimises oil spills.
  • Protected hose routing.
  • Less dirt in the cab.



Rotator

Weight (kg)

Max. lift capacity

Coupler

Rotor

Adapter

RT1204

673 kg

717 kg

955 kg

54 t

RT1504

673 kg

873 kg

955 kg

68 t





Rotator

RT1204

RT1504

A

751 mm

751 mm

B

1022 mm

1022 mm

C

750 mm

750 mm

D

1214 mm

1214 mm

E

1516 mm

1516 mm

F

1343 mm

1343 mm

G

818 mm

818 mm
