Rammer hit smarter with new releases at CONEXPO/CON-AGG 2020

Continuing to provide customers with the very best in breaking and associated products, Rammer unveiled a host of new solutions at this year’s CONEXPO/CON-AGG - including the introduction of its demolition tools range to North America, Telematics developments, latest in the Excellence Line and the launch of the giant 9033E...

The Rammer Excellence Line continues the company’s 40 year tradition of delivering innovative hammers designed to improve profitability, safety and performance. With its new customer- focused features, the line demonstrates Rammer’s commitment to assisting businesses to enhance their performance. The updated/upgraded Excellence Line  will receive its official US launch at the Las Vegas show, underlining Rammer’s desire to constantly renew its offering to meet changing customer requirements.

Hits smarter
The Excellence Line comprises state-of-the-art hydraulic hammers that are ready for all rock breaking requirements. A key feature  is that safety is at the heart of  operation across the whole range, whether the hammer is being used in a quarry, on a demolition project, tunnel or any other application.  The newly updated range now includes integrated smart technology for easier fleet management and more efficient processes, thereby continuing Rammer’s tradition of delivering innovative hammers designed to improve profitability, safety and performance.

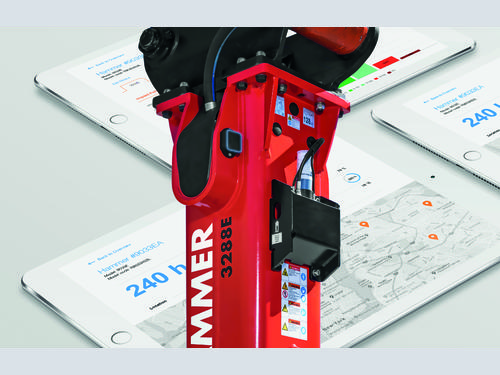

RD3 and ‘MyFleet’ Telematics service
One of the major developments within the Excellence Line is Rammer’s purpose-developed RD3 remote monitoring device - a first of its kind on hammers. RD3 is a standard feature on all Rammer Excellence Line hammers, it is also available as on option for Rammer Performance Line hammers and as retrofit-kit for older Rammer hammers. RD3 is the latest service indicator development from Rammer, using the latest GPS and Telematics technology. The new Telematics solution is more advanced and is  based on customer feedback. Additionally, RD3 uses the Rammer MyFleet Telematics service to track and monitor fleet equipment usage without the need to go to site to collect  data - ideal for dealers, rental companies, service managers at contractors and operators. This cloud based system enables the hammers to be viewed and monitored via Google maps.

The RD3 remote monitoring device, together with the MyFleet service, is the solution the construction industry has been seeking for many years, and is set to become a key component of the equipment rental business. Furthermore, its features improve total utilization of equipment, of particular benefit in applications where the hammer is part of the process (such as quarrying, mining or tunneling), and where unscheduled interruption cannot be tolerated.

Hammer lifetime
Operationally, RD3 provides the information that businesses need to get the very best from their hammers.  The system enables remote monitoring of total operating hours for new units and comes with a new hammer feature, the ‘hour meter’, linked to the unit’s serial number to measure the exact number of hours it has worked. This enables more accurate invoicing (for example, in the case of hire companies or contractors), proactive or  scheduled servicing and enables an accurate value to be set if the unit is sold or traded. The system also enables owners and managers of fleets to know exactly where their equipment is and how it is being used. This facilitates better business decision-making,  improved security and optimized fleet location, together with enhanced application knowledge and operator support - all accomplished via GPS data, contributing to the overall profitability of the business.

As well as using the MyFleet service, Rammer’s new remote monitoring device also draws heavily on the latest version of Rammer’s Ramdata system. Rammer has long been a pioneer in the field of developing Telematic customer-focused solutions, with Ramdata II and now RD3 being the very latest in a line of intelligent solutions. Both of the latest introductions have drawn heavily on feedback from customers, dealers and fleet managers,

with the system being refined and developed to facilitate a new way of operating. The combination of MyFleet Telematics and data accessed through RD3 enables well-informed business decisions to be made.

Other outstanding features
As well as RD3, Rammer’s ever-developing customer-focused outlook is demonstrated through a host of further new features – for example, lower tool bushing rotation and easy replacement in the field which increasing lifetime and reduced operating costs.  This is further reflected through the use of two tool retaining pins that increase the lifetime of the tool and retaining pins, also the lifetime of the tool bushings. An IBP on/off selector is fitted to the valve body, enabling easy field adjustments (available for all medium and large hammers 1655E and upwards) with separate greasing channels from the valve body to the upper and lower tool bushing further increasing tool/tool bushing lifetime. New, robust plastic wear-resistant plates for optimum hammer protection and noise reduction are also now fitted.

Easy adjustment and replacement
The Excellence Line has been designed so that it is now even easier to adjust Idle Blow Protection (IBP) in the field, decreasing both operating and maintenance costs. IBP ensures that the hammer cannot be operated until pressure is placed on the tool. It also protects the tool from failure and tie rod stress, reduces oil overheating and protects against premature failures. In addition, all large Rammer hammers have another “easy in the field” adjustable feature: Stroke Selector. This allows the operator to optimize hammer operation according to material and application, either to more frequent lower power strokes in softer material or to fewer high power strokes in hard material.

New separate greasing channels from the valve body to the lower and upper tool bushing  enable optimum greasing for both bushings, increasing the lifetime of the tool and tool bushings, saving money on maintenance costs. The latter is achieved due to the upgraded Rammer Ramlube II, an on-hammer automatic greasing device, with separate dozers to adjust optimum grease amounts to tool bushings and an easily changed grease cartridge which provides ease of maintenance in the field. Also, the rotation or replacement of the lower tool bushing in the field is now done by removing the easy-to-use pin. The replaceable lower tool bushing decreases any maintenance costs while also reducing cost of ownership and operating costs.

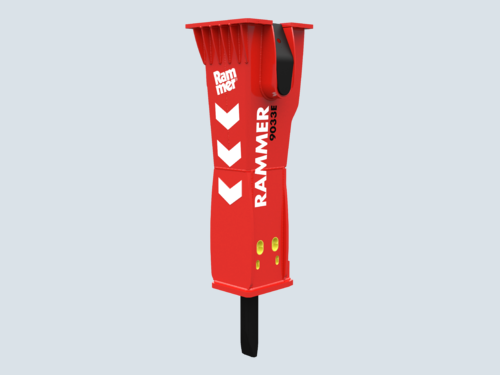

Global launch of the giant 9033E
The latest member of the Excellence Line, the 9033E, will receive its official global launch at CONEXPO/CON-AGG. Designed for carriers in the 65 - 120 t (143,300 lb – 264,600 lb) range, the 7,400 kg (16,310 lb) 9033E has all the features found on existing members of the Excellence Line, but in a size and format that delivers the extra punch demanded on major quarrying and demolition projects. Its design means that the 9033E is however able to work quietly, with a guaranteed sound level of 131 dB LWA (sound power level of measured 127 dB LWA).

US launch of demolition tools range
As a leading force in the demolition and recycling sector, Rammer has drawn upon its years of experience in the breaking business to offer attachments that combine power, compact dimensions, durability and lightweight characteristics. These attachments have been developed to allow safer and smarter working, and will receive their official US launch at CONEXPO/CON-AGG. They comprise the Rammer Cutter-Crusher (RCC) range, the Rammer Scrap Shear (RSS) line-up, RPV Series of Rotating Pulverizers and Static Pulverizers - also Rammer RGP Grapples and RMP mutliprocessors. These are suitable for demolition and material handling applications but also accurate enough for picking and sorting applications. The entire range is now available: on display at CONEXPO/CON-AGG will be members of the RPV static and rotating pulverizers as well as the RCC Cutter-Crushers.
