Screening and shredding technology from Eggersmann for processing wood and bio-waste.

The Eggersmann Group has a wide-reaching product portfolio of high-performance shredders, screening machines and windsifters at its disposal to treat all kinds of materials. To process wood and bio-waste the company offers multiple solutions of well-known brands.

Wardenburg. Soon to be, an increase of waste wood and bio mass is expected in shredding and screening. For this reason, the demands in throughput and flexibility of the machines are high.

In the field of waste wood shredding, there is an increased demand for one end-product, in one operation – smaller than 150 mm and not contaminated. In addition, in the treatment of biomass the purity of variety as well as the ease of separation of the end product and adhesions is a deciding factor. It is also important to keep the operating costs of the machines at a low level. Compact, slow-speed shredders are the best option to meet these requirements.

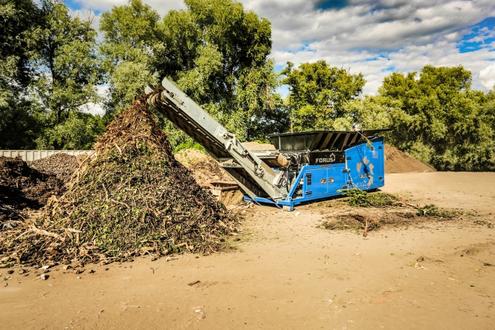

FORUS concentrates its actions within the Eggersmann Group on the further development of slow-speed shredding. To create a broad application area, the FORUS shredders are offered with a classical synchronized shredding or the asynchronous shredding process. These machines consist mostly of universal dual shaft shredders at the market entry-level.

With the TEUTON Z 55, the Eggersmann Group offers a premium class single-shaft shredder that can be used in the most diverse applications. The machine is usable from pre-shredding to creating a clean end-product, and also offers high throughputs.

Terra Select, a company that also belongs to Eggersmann Group, is a specialist for screening and separation technology and has a wide array of machines for the processing of wood and biomass. The star screen S 60 is designed for high-volume streams and can refine the fine grain of <10 mm, including a coarse grain of 150 mm in one operation, producing a marketable product. Feeding the S 60 can be done by a wheel loader or the TEUTON shredder.

If three fractions in one operation are required, then the selection of a trommel instead of star screening; then the double-trommel devices of Terra Select are the correct choice. The double trommel screen DT 60 is perfectly suited for volumes up to 120 m³/h and refines fine and coarse grain in one step. In woodchips, a fine grain screening from < 4 mm, 4-25 mm and > 25 mm is possible.

The last step in processing waste wood or biomass as fuel is mostly the separation of impurities – especially stones. For this kind of task, the Terra Select windsifter W 80 is the best match.
