Terex Finlay introduce NEW 883+ triple shaft heavy duty screener.

Terex|Finlay showcased the latest addition to their 8-Series line up of heavy duty screeners, the ‘883+ triple shaft’ at the recent Conexpo 2020. This new model is has been developed specifically to work in a variety of dry and difficult sticky applications including quarry, mining, sand and gravel, construction and demolition debris and recycling applications.

The heart of this new model is the new triple shaft screenbox, featuring two “true” full size 16’ x 5’ screening decks. The triple-shaft design of this new screenbox employs an oval motion stroke to  generate an aggressive screening action, reducing plugging and blinding over the screen decks to ultimately provide a quality product with high tonnage output.

The aggressive screening action of the machine with the larger throw on the screenbox makes it ideal for fine screening a diverse range of materials. Even when under heavy load during the testing phase the screenbox has consistently produced high tonnages across a range of difficult and challenging applications.

We have retained some of the in-built features of our current 883+ screener, including the ability to hydraulically raise the discharge end 500mm to facilitate easy and efficient media changing.

We are introducing three new design features in this plant; firstly we have  increased the width of the fines conveyor to 900mm wide. Secondly, we have increased the hydraulic power to the fines conveyor and thirdly we have set the engine to run at a lower speed. Each of these features have been incorporated to maximize the overall operational efficiency of the plant.

We are pleased to confirm that these updates will be carried across into our standard 883+ platform and will be a feature on plants configured with either our standard screenbox or Spaleck screenbox option.

Key features of the 883+ triple shaft:

  • Higher G-force and larger stroke of the triple shaft screenbox provides the optimal solution for high productivity in dry and sticky applications.
  • Multiple media configurations including bofor bars, finger screens, woven mesh and punch plates are available for a wide range of applications, from fine screening to heavy scalping.
  • All media configurations are compatible with both the standard and triple shaft screenboxes.
  • The banana profile of the bottom deck maximizes the screening of fine materials.

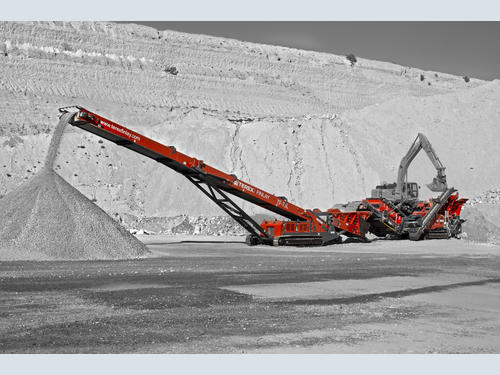

 Terex Finlay 883+ (Tripe Shaft) Heavy Duty Screener & TC-80 tracked conveyor (recycled asphalt classification)


 Terex Finlay 883+ (Triple Shaft) Heavy Duty Screener (recycling asphalt classification)

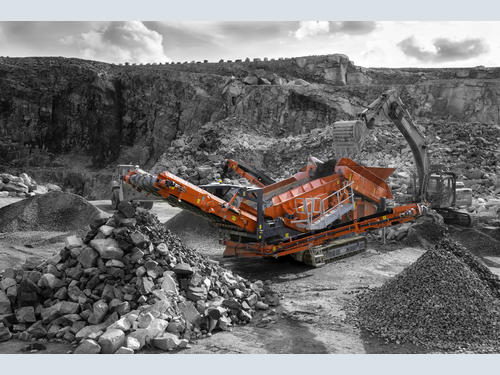

Terex Finlay 883+ (Triple Shaft) Heavy Duty Screener (quarry application)

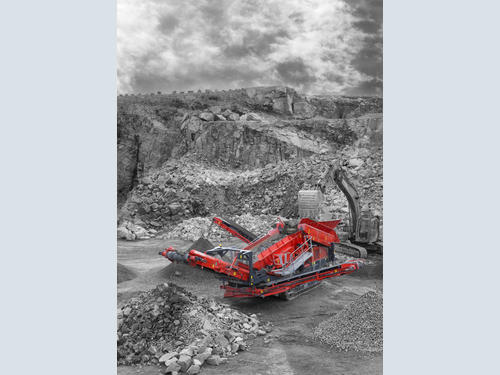

Terex Finlay 883+ (Triple Shaft) Heavy Duty Screener (quarry blast application)
