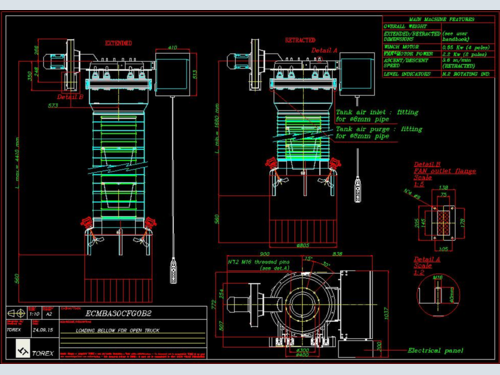

Used Loading Bellow for open truck

1 (ONE) – EXCELLENT QUALITY USED LOADING BELLOW FOR OPEN TRUCK.

This loading bellow has a maximum capacity of 250m3h and is supplied with a built-in filter.

MATERIAL : CARBON STEEL

BELLOWS : 2 DOUBLE BELLOW NEOPRENE-HYPALON® 60 30

CONES : SMALL CONES 30 60

STROKE MT : STROKE 3 MT

STROKE MM : STROKE 0 MM

FEEDING : DRIVE CAT 3D ATEX

MOTORISATION : 220-240 V 50 HZ ---380-420 V 50 HZ

LEVEL INDICATOR : DOUBLE ROTARY LEVEL INDICATOR 24 VOLT ATEX

ANTIWASTE DEVICE : WITHOUT BOTTOM CLOSURE CONE

CONTROL PANEL : ELECTRIC PANEL AND PUSHBUTTON PANEL ATEX

CARTRIDGES : ANTISTATIC CARTRIDGES EXTENDED : 4970.0 MM RETRACTED : 2240.0 MM WEIGHT : 326.0 KG INLET DIAMETER : 300.0 MM MAXIMUM CAPACITY : 250.0 M3h PACKAGING : 1200.0 X 1300 X 1900 ATEX COMPLIANT : GR.II CAT 3D C T185 C - MIE 3MJ - TAMB -20 C +40 C PAINTING : 3003D OUTSIDE RAL 5010

ASKING PRICE GBP £8000.00 ex works Worksop, Nottinghamshire

Delivery: Ex Stock

**CONTACT OUR ENGINEERING DEPARTMENT on +44 1909 486166 or email sales@canningconveyor.co.uk

Canning Conveyor Co. Ltd

Sandy Lane Industrial Estate, Worksop, Nottinghamshire, S80 1TN, United Kingdom
