Ashcourt’s Big Wellies…..

The Hull-based Ashcourt Group has added a bespoke A30G articulated hauler to its ever increasing portfolio of Volvo Construction Equipment products which will go to work for the Group’s waste management division...

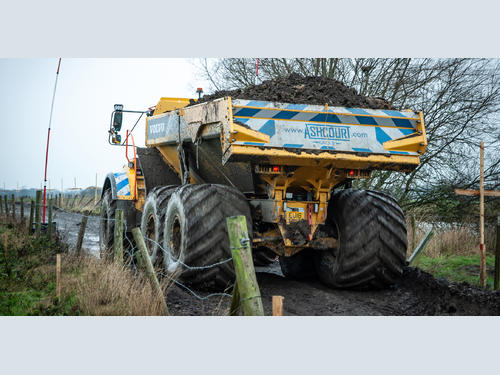

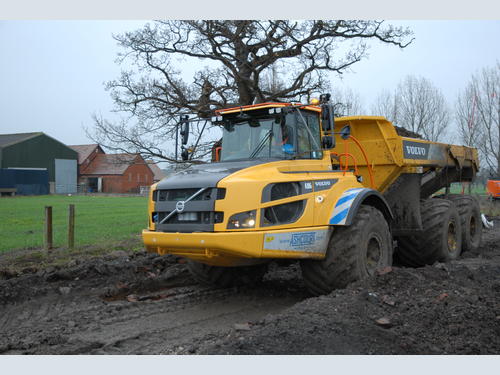

The new A30G with a carrying capacity of 28 tonnes and heaped capacity of 17.5m³ has been specifically modified to work on extremely soft ground surfaces thanks to the addition of Michelin Mega XBIB 1000/50 R25 tyre and wheel assemblies. In order to make these assemblies compatible with the truck, the rear bogie beams had to be elongated and special blocks added to prevent the tyres from fouling on the skip. On the tractor portion of the hauler, mudguard extensions have been added to cover the extra width of the tyres enhanced by the addition of Ashcourt’s striking blue and white prismatic chevrons.

“This is the first time we’ve put these ultra-low ground bearing pressure tyres on one of our trucks,” explains Ashcourt’s Plant Manager Adam Donkin. “Admittedly this has added a significant cost over the standard truck, but we’ve calculated it will pay dividends in the long run. So far we’ve been very pleased with our evaluation of how the truck is performing, particularly on soft and boggy ground. The floatation characteristics are such that we are avoiding the usual problems of creating ruts on our site’s haul roads. Further-more it negates the need for laying stone to create temporary haul roads then removing it again which is a huge cost saving.”

The A30G hauler from Volvo meets the requirements of Stage IV final emissions legislation being powered by an electronically controlled, six-cylinder 264kW turbo charged Volvo V-ACT diesel engine. This features high torque at low engine speeds, resulting in good fuel efficiency, high performance, quicker engine response and less wear, i.e. long service life. Purpose built by Volvo, the engine is designed to exactly match the Volvo drive train, ensuring the best use of power and torque, even in tough working conditions. Delivering exceptional fuel efficiency, it is matched to a torque converter with built in lock-up function and fitted with a fully automatic fast adaptive transmission. The rest of the Volvo designed and built powertrain has been reinforced to cope with the higher torque output of the engine.

The advantage of fitting the Michelin Mega XBIB 1000/50 tyres over the standard 750/65 R25 offering gives Ashcourt’s A30G a 26% increase in surface area (the truck’s footprint) and a reduction in ground pressure from 160kPa to just 119kPa making it highly versatile on soft and boggy conditions. The increase in overall width takes the truck from 2.95 metres to 3.55 metres. “The added width is not an issue for us on site but as you can imagine, it makes the A30G incredibly stable too!” says Adam.
