Conveyor Belt Cleaner Designed for Aggregates Handling

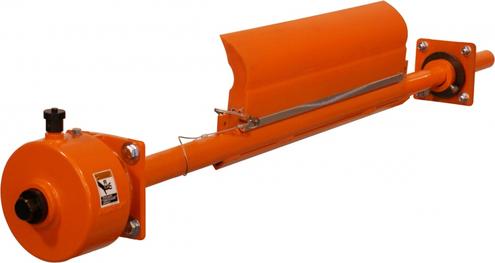

[Neponset, IL] – A global leader in bulk material handling technology has announced a conveyor belt cleaner engineered specifically for the aggregate industry. The Martin® PV™ Cleaner is a durable, one-piece blade that contains approximately 20 percent more urethane than comparable primary cleaners, yielding a longer life in challenging service conditions. This aggressive design for gravel applications is able to remove even wet, sticky sand from belts 18-72 inches (450-1800 mm) wide.
Engineered to simplify maintenance and reduce costs, the mounting system delivers “no-tool” replacement, as it’s simply dropped into place and secured with a wire lock pin. “This cleaner uses an aggressive angle of attack to the belt for improved cleaning efficiency,” explained Martin Engineering Senior Product Specialist Dave Mueller. “And the quick-replacement feature means never having to deal with corroded bolts or other fasteners during blade changes.”
The belt cleaner from Martin Engineering features the company’s patented Constant Angle Radial Pressure (CARP) design for consistent cleaning throughout all stages of blade life. The specially-engineered curved blade maintains the same contact angle, even as the belt wears, helping to retain cleaning efficiency.
The Martin PV Cleaner fits head pulleys up to 16 inches (406 mm) in diameter and belt widths from 12 to 72 inches (300 to 1800 mm). Cleaning width is matched to the conveyor load profile. Typically supplied as a complete assembly, it can accommodate a standard cable tensioner, spring tensioner or the Martin® TwistTM Tensioner. The durable frame can be fitted with solid or segmented blades. Maximum recommended belt speed is 500 FPM (2.54 m/s).
