Doosan Construction Equipment at World of Concrete 2019

Doosan Construction Equipment will display a variety of products at its booth – C5577 – in the Central Hall at the Las Vegas Convention Center during the annual World of Concrete exhibition in Las Vegas in the USA from 22-25 January 2019.

On display will be a Doosan® DL200TC-5 tool carrier wheel loader with a quick coupler and pallet fork. Also being shown will be a DX140LCR-5 reduced tail swing crawler excavator with a quick coupler and DXB100H hydraulic breaker. The excavator will be configured with optional rubber track pads, a dozer blade and the window guarding package for enhanced uptime protection.

DL200TC-5 Tool Carrier
The DL200TC-5 is designed for loading and carrying, and it has a parallel-lift linkage system. With increased visibility down the centre of the parallel-lift arms, operators can clearly see the ground, truck or work area in front of the machine when placing loads. In addition, the parallel-lift linkage system keeps the work tool flat as it is lifted rather than rolling back, an advantage when lifting pallets and other loads that need to stay level.

The machine features a hydrostatic transmission, giving operators more power, improved fuel efficiency and better precision while working. Operators can choose between three power modes – power, standard and economy – that adjust the maximum engine rpm. Unique to the hydrostatic drive system, the engine rpm is not directly correlated to the machine’s travel speed, so the maximum travel speed remains unaffected.

In addition, wheel loader operators can choose from three traction modes – max, traction control and S-Mode – to easily adjust traction force to match jobsite conditions for more efficient operation in digging, stockpiling and loading applications.

The machine is also available in a high-lift option for additional lift height and reach to more easily load materials such as cement into high-sided trucks.

Brief specifications for the Doosan DL200TC-5 wheel loader

• Power: 106 kW (142 HP)
• Kinematic: Tool Carrier (parallel lift)
• Bucket capacity: 2.0 m³
• Breakout force: 100 kN
• Dump height (bucket edge): 2760 mm
• Operating weight: 11700 kg

Approved attachments: general purpose, light material and multi-purpose buckets; pallet fork and quick coupler

Attachment: Pallet fork
A variety of materials can be lifted, carried and placed with the pallet fork attachment. The attachment helps in a variety of construction applications and offers multiple carriage widths and tine lengths.

Other features include:

• Open carriage: Provides good visibility for picking up and placing materials
• Manual adjustable tines: Allows forks to be adjusted depending on material
• Quick coupler mount only: Can be quickly attached and removed from machines equipped with a quick coupler, allowing the attachment to be used on multiple machines

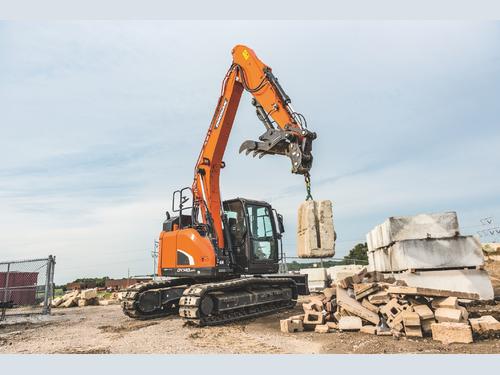

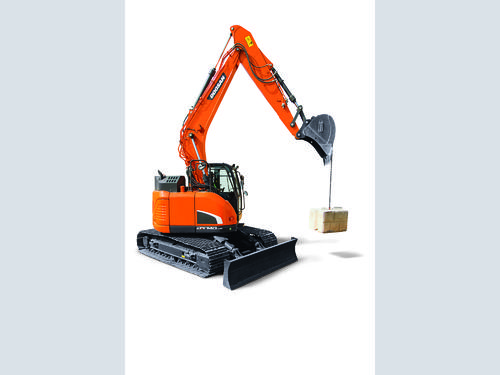

DX140LCR-5 Crawler Excavator
The DX140LCR-5 excavator offers a shorter tail swing, allowing operators greater flexibility where space is a premium without sacrificing performance. The DX140LCR-5 excavator is designed for long life with an extra-sturdy frame and reinforced superstructure. It comes standard with permanently sealed and lubricated track links, and the workgroup bushings and hard-wear disks are designed for reliability as well as extended service intervals to increase uptime.

A standard 7-inch LCD screen allows operators to continue monitoring the excavator parameters while viewing the rear view or side view camera image. Critical machine data appears next to the camera view. With an available side camera, a split screen allows both camera displays to be viewed at once.
