Maximus Crushing & Screening – the premier manufacturer of materials handling equipment from Northern Ireland.
3D Steelwork Ltd was created in 2004 by Mr. Shane O'Neill. The company initially started out as a structural steel company and soon became the premier structural steel company in Northern Ireland - engaged in the manufacture and supply of products and services used within the construction industry across Ireland and the UK.
In 2008 the company diversified into the design, manufacture and supply of high quality screening and conveying machinery for use in the quarry, mining, construction and materials handling industries. This diversification came under the newest and freshest brand name on the market - Maximus Crushing & Screening.
Maximus Crushing & Screening has already established a reputation for producing high quality, reliable, heavy duty vibrating screeners and conveying systems and has brought to market 10 new tracked mobile screening machines, a new jaw crusher and a range of static and mobile conveyors and screening units. In the last 3 years, over 400 screening plants were sold in more than 20 countries all over the world and are successfully in operation in a variety of climates and harsh working conditions.
We will be showcasing the new Maximus MXC-2 Cone Crusher at the Hillhead Show. This will be the official launch and world premiere of the MXC-2.
Our ever expanding product range has led to an exciting growth period for the company - currently with 90 employees and aiming to increase our workforce even more over the coming years.
Below are details on a few of the machines we are currently producing;

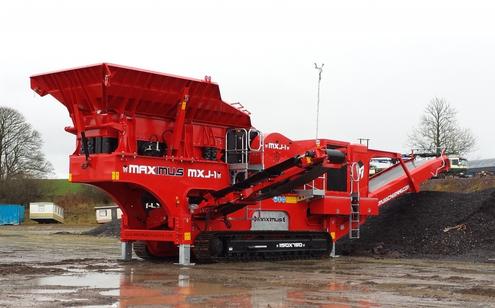

MXJ-1 Jaw Crusher
The MXJ-1 continues to deliver the same quality, productivity and reliability for which Maximus has become renowned throughout the world.
The MXJ-1 is a high performance primary jaw crusher for quarrying, mining, recycling and demolition applications. The powerful hydraulically driven 1150×750 jaw box has been developed for the most demanding applications with productivity and reliability to the fore. The heavy duty construction used in the machine gives added strength and durability which our customers have come to expect from Maximus equipment.
The MXJ-1 is equipped with a huge feed hopper with 10 m3 capacity, a grizzly pre-screening grid and a large 1200 mm main conveyor belt which gives the largest stockpile heights in its class. The Jaw crusher has an inlet opening of 1150 x 750 mm (46“ x 30“) and is equipped with hydraulic wedge adjustment and reversible hydrostatic drive. The powerful CAT C9 261 kW (350hp) engine allows the MXJ-1 to perform with ease in the hardest conditions.
The MXJ-1 has been designed with easy access for maintenance and service in mind. The electrical system is modern and user friendly, plant set-up is fast and flexible, and the machine has a transport weight of just 57 tons.
Heavy duty mobile scalper 620
The Maximus 620 is a heavy duty, high capacity mobile scalper designed for large scale operators and capable of screening a wide variety of material in the harshest conditions. It is designed to cope with the heaviest applications and can be used in construction and demolition waste, primary crusher circuits, iron ore, aggregates, coal, recycling, heavy rock and topsoil.
The Maximus 620 is equipped with a 225 Hp (168 kW) CAT C6.6 Diesel engine with shut down protection, a heavy duty hopper with 8.7 m3 (11.7 yd3) capacity and a high energy 2 Bearing 20 x 6 screenbox which rises at the lower end for bottom deck access for maintenance or service.
The tail conveyor is fitted with a 1.6 m (63“) wide chevron belt and 2 integrated side conveyors. All belts can be folded hydraulically for transport
The Maximus 620 is an extremely versatile screener with many options available with a quick set-up time upon arriving at the jobsite.
522T Vibrating Screener
The Maximus 522T is the class leader other triple decks aspire to. With class leading production capacities and the largest combined screening area available in today’s market, the Maximus 522T is the obvious choice for medium to large scale operators who need high capacity and high specification aggregate screening capabilities.
The massive screening area of the 6.7m (22ft) x 1.52m (5ft) top and middle decks and the 6.1m (20ft) x 1.52m (5ft) bottom deck, in combination with the Maximus heavy duty, high energy screening configuration, is specially designed for fine product separation.
A patented hydraulically folding auxiliary conveyor, which reduces set up time and eliminates the need for a crane.
Class leading stockpile heights and class leading feeder capacity make the 522T the number one choice for the serious aggregate producer
Maximus T80-48 Track Conveyor
The MAX T80-48 is the largest conveyor in our range and is designed for ease of mobility on site. It is manufactured with a highly robust chassis for optimal strength in difficult working conditions. The T-Series of conveyors are designed to optimise stockpile capacities and minimise on-site material handling costs.
The hydraulic folding head section in the MAX T80-48 allows for fast efficient road transportation and the machine has a typical set-up time off less than 10 minutes.
The T80-48 has a 48“ (1220mm) wide belt and is 80‘ (25m) in length. It comes with a powerful Cat C2.2 engine and has hydraulically adjustable feed boot and head section heights. The T80-48 has a number of options available, including radio control tracks, electric drive, dust suppression, etc.
Maximus MXC-2 Cone Crusher
The MXC-2 cone crusher is the latest design and engineering innovation from Maximus Crushing & Screening and is a continuation on our focus for quality, durable, reliable machinery with optimal production capacities. The MXC-2 is a medium to large tracked mobile cone crusher and comes equipped with a 1200mm (47”) MSP300 high capacity cone. The MXC-2 is ideally suited to secondary crushing applications such as taking feed from the MXJ-1 primary jaw crusher and provides excellent reduction ratios, throughput potentials and finished material cubicity.
The MXC-2 comes with a unique Webasto lubrication oil heating system built in as standard in the lube tank. This heating system can be pre-set to heat the lube oil up to 2 hours in advance of the machine starting time in 7 day cycles.
The powerful CAT C13 328 kW (440hp) engine allows the MXC-2 to perform with ease in the hardest conditions.
The unveiling of the MXC-2 at the Hillhead Show in Buxton is an exciting leap forward for our company and will lead to many new opportunities for us, in terms of potential customers and dealers.
We also produce a range of material handling equipment – track and radial conveyors, ship loaders, static dry and washing screens – all of which can be viewed on our website.
