QMS Crushing and Screening Plant Installed in West Africa

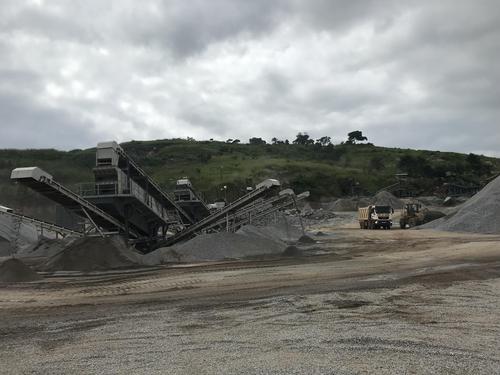

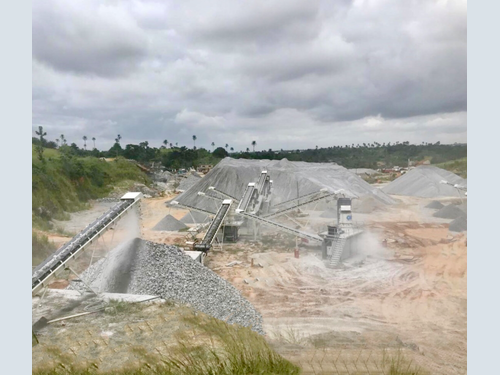

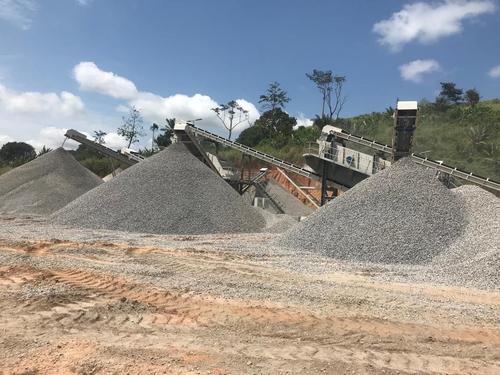

QMS recently installed a complete 300tph crushing, screening and stockpiling plant into their customers quarry in West Africa. This is the third complete crushing plant QMS has supplied to this customer in the past two years.

The QMS modular range of crushing plants are 100% manufactured in-house by QMS at state-of-the-art facilities based in Coalville, Leicestershire, U.K. Each module is CE compliant and manufactured in accordance to ISO9001 and BS EN 1090-1:2009+A1:2011 standards.

The complete crushing plant was installed and commissioned by QMS mechanical and electrical service engineers.

This plant comprises of a QMS 1200 x 750mm primary jaw crusher, B3-XC secondary cone and B4 tertiary cone crushers, 1.83x6m two and three deck inclined screens, tunnel feeder, feed hopper and all conveyors.

Primary crushing takes place using the 1275 jaw crusher. The jaw combines both high capacity and reduction ratio. With fully hydraulic setting adjustment and overload protection the design ensures ease of operation and reliability, making them perfect for use in quarrying, mining, recycling and demolition applications.

Secondary and tertiary crushing is undertaken using QMS B series cone crushers. These cones create excellent product shape and can be configured to maximise production of single sized aggregates. Their variable eccentric throw and range of crushing chambers provides maximum versatility allowing the crusher to be configured to suit your individual project needs.

Sizing comes from QMS SVI inclined screens. Their light weight yet high strength design makes these screens capable of handling a wide range of materials and product sizes with ease.

The plant is controlled using the QMS C3 Plug and Play HMI control system. The complete crusher control system features remote touch screen operation allowing visualisation, process control and real-time monitoring of all parameters as well as event logging.

This example is part of a wide range of crushing plants available. QMS has designed and developed a range of predesigned plants to suit most common crushing and screening applications as well as offering custom-made plants for more complex applications, ensuring QMS always has a solution to fit your needs and budget.

Each of the QMS crushing modules can be transported on standard trailers or shipped in containers for ease of shipping worldwide at reduced costs. Their modular design, including all walkways, stairs, handrails and guards, allows each component to be erected on site in a rapid time frame with only the use of basic tools. All components are pre-wired and tested prior to being despatched.

All QMS crushing plants incorporate truly innovative and modern design features and are made using the latest manufacturing techniques. Through years maintaining, servicing and repairing crushers and screens, this industry knowledge provided QMS with new ways to conquer any quarrying and mining challenges.

The crushing and screening equipment is supported by outstanding aftersales service. With a huge selection of spare and wear parts available, you can be sure QMS will keep your plant running all year round.

For more information contact our Sales Department – Sales@qmsupplies.co.uk
