Terex Finlay introduce NEW TF-75L low level feeder at Bauma, 2019.
Terex Finlay have progressively and systematically developed a comprehensive range of robust, reliable and efficient bulk material handling and stockpiling solutions.
Today the range comprises tracked mobile conveyors, high and low level feeders. In the coming months the TF-75R radial stockpiler will join the range following an exhaustive and robust testing phase in diverse a range of product applications in locations throughout Europe.

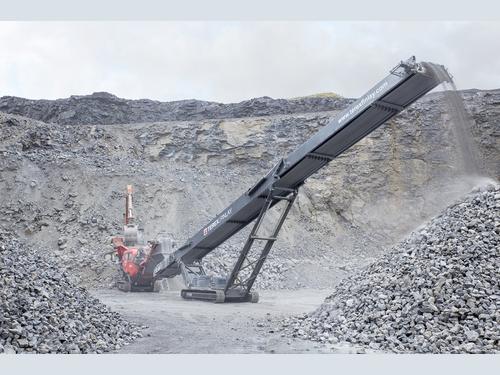

The TC-65 and TC-80 tracked conveyors where the first machines to be launched in the range during 2017. The uptake by the dealer network and acceptance by the market place of these machines has been exceptional. The models have been engineered with superior designs intelligent design of these machines enables them to be folded into a transport envelope that allows these machines to be transported inside a 40ft container and shipped cost effectively globally or transported easily from site to site on a low bed trailer.
At Bauma 2019, Terex Finlay showcased the latest new conveying product in the form of the TF-75L low lever feeder. This new addition to the portfolio has been designed to maximize productivity, enhance efficiency and reduce on site operational costs in a wide range of applications and feed material types. The large 7m3 (9.2yds3) hopper with a feed in height of 1900mm and width of 3500mm enables low level feeding directly from excavators, grab cranes, and wheel loaders. For onsite safety and quick set the hopper is fitted as standard with hydraulically folding sides. Depending on the application a number of grid and hopper extension options for particularly abrasive materials a steel apron feeder option are also available. Tracked mobility and the ability to feed material from all three sides enables the TF-75L to be easily incorporated into open and closed circuit static and mobile crushing and screening circuits.
The 1200mm/48” wide variable speed main conveyor has the capability to handle up to +600 mtph of materials depending on the feed material and working angle of the machine. The impressive 9.8m / 32’ 2” maximum discharge height provides a maximum conical shaped material stockpile capacity of 1735m³/2269yd³.
With an average fuel consumption of approximately 8.5 l/hr the TF-75L reduces the need for doubling handling of materials and also the requirement to operate secondary equipment such as loaders on site.
By replacing these supplementary pieces of equipment with a TH-75L low level feeder, operators will immediately benefit from reduced operational, maintenance and labour costs and lower the overall cost per tonne. We estimate that these savings can be up to 80%, a significant immediate saving for operators who can either redeploy their loader or simply avoid the investment altogether.
As with all Terex Finlay crushers, screeners and conveying equipment, the TF-75L low level feeder has been designed for ease of movement between job sites, ease of redeployment on site and rapid set up and tear down times so that the machine can be to put work in less than 15 minutes from transport mode.
