Silver Mine Controls dust and spillage using modern conveyor technology
A global leader in the design and manufacture of conveyor components has helped the largest primary silver producer in North America to mitigate fugitive material and increase safety by upgrading the company’s bulk handling system. Coeur Mining, Inc. was experiencing excessive dust and spillage on the conveyor leading from the crusher to the surge pile, which lowered air quality, required 5-10 man-hours per day to clean, and caused unscheduled downtime from premature equipment failure. Martin Engineering installed a transfer point load zone using EVO® Conveyor Architecture that contains dust and spillage by centering and controlling cargo, resulting in reduced maintenance, improved workplace safety and a lower cost of operation.
Coeur Rochester, located in Pershing County, Nevada, produced an estimated yield of 5.0 million ounces of silver and more than 50,000 ounces of gold in 2015. The massive site is spread over 10,800 acres (43.7 square kilometers), and includes a network of 20 conveyors, originally designed and installed in 1986. Given the system’s age and the amount of usage over nearly 30 years in service, company officials wanted to find ways to update the conveyors with leading-edge technology to raise efficiency, reduce dust and spillage, and contribute to improved safety.
Discovery
Conveyor B was chosen as the starting point with the most potential for improvement, a 48-inch (122 cm) wide belt running at 386 fpm (117.65 mpm), with a 40-foot (12.2 m) chute wall. With a troughing angle of 35 degrees, Conveyor B handles nearly 1500 TPH of rock that has been sized to 4-inch (10.2 cm) minus, carrying it from the secondary cone crusher to the surge pile stacker. It’s loaded directly by a vibrating grizzly feeder under the chute and the secondary crusher.
“There’s a long fall going to the secondary crusher, and that creates a huge disturbance in the material flow,” explained Crusher Operations / Fixed Plant Maintenance Superintendent Wayne Maita. “We were seeing a lot of dust and spillage in that area. It not only affected the air quality and presented a potential safety risk from accumulated material on floors and structures, but it also meant putting operational personnel in close proximity to the moving conveyor for cleanup.”
Coeur also noticed belt damage occurring as a result of fugitive material. “As material escapes, it accumulates on idlers and other components, often creating friction points that contribute to excessive wear and premature failure,” commented Martin Engineering Product Engineer Daniel Marshall. “That can have immediate costs such as belt replacement and seized bearings. And once an idler freezes, the constant belt movement can wear through the shell with surprising speed.”
Coeur managers initiated discussions with HARDROK Equipment -- a licensed dealer of Martin Engineering equipment -- revolving around the EVO® Conveyor Architecture. “With proper design, premium components should improve productivity and safety, and that greater efficiency delivers a lower total cost of ownership,” observed HARDROK President Ted Zebroski.
Installing a Solution

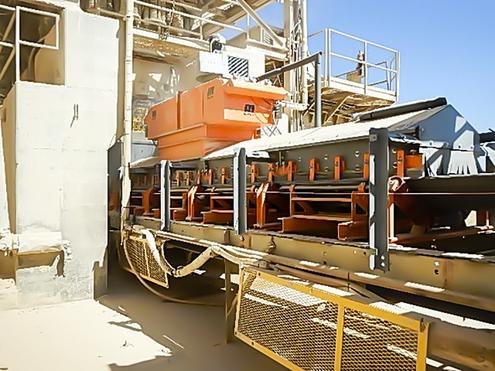

A team of eight technicians from HARDROK and two Martin supervisors began work during a scheduled outage. Over a seven-day period, five Martin EVO Combination Cradles were installed to absorb the impact of the falling load, while minimizing friction and belt wear. Steel-reinforced impact bars and adjustable wing supports matched standard trough angles of 20º, 35º or 45º. The Combination Cradle replaces the center bars with an impact idler roll, a design that delivers a flat surface for an effective edge seal, but minimizes the friction of having sliding bars all the way across.
Five EVO Slider Cradles with low-friction bars were also installed to support the belt edges and stabilize the belt line, eliminating belt sag and bounce. Located in the chute box after the impact cradles, the units’ “double-life” slider bars offer a superior seal with low friction and enable each bar to be flipped over at the end of its useful life to provide a second wear surface. The result is a flat and stable belt surface throughout the settling zone, reducing fugitive material and extending belt health. Both cradle designs feature Martin Engineering’s Trac-Mount™ technology, allowing the units to slide in and out easily for maintenance or replacement.
Forty feet (12.2 m) of modular chute wall replaced the old structure, with a tail box and integrated dust curtains. A chromium carbide overlay on the inside of the chute protects the new containment system from intermittent high-burden depths on the conveyor. The chute is raised 4" (10.2 cm) above the belt and fitted with an external wear liner. Using this approach, the material still hits the liner and doesn’t damage the chute. The result is significantly reduced installation and service time, with reduced risk during service.
At the bottom of the wear liner installers mounted 84 linear feet (25.6 m) of Martin ApronSeal™ Double Skirting, which delivers two wear surfaces on a single elastomer sealing strip. When the bottom side of the strip against the belt is worn, the sealing strip is inverted, providing a second service life.
To maintain a straight and consistent belt path, technicians then installed a Martin Heavy-Duty Tracker™ Belt Tracking System, both upper and lower units. Utilizing innovative multiple-pivot, torque-multiplying technology, the tracker detects slight misalignments and uses the force of the belt to automatically position a steering idler in the opposite direction of the misalignment.
To address belt carryback and further reduce the chance of fugitive material, a dual belt cleaner system was mounted on the face of the head pulley. The Martin QC1™ Cleaner XHD primary cleaner is engineered to deliver durable belt scraper performance in challenging applications, high belt speeds and multiple splices. Directly after the primary cleaner is a Martin DT2™ Inline Cleaner XHD, a secondary conveyor belt scraper featuring rugged blades installed on a track that slides into position on a rigid steel mandrel, which allows quick blade replacement.
A final belt protection mechanism was installed at the tail pulley to fight the damaging effects of fugitive material on the return side of the belt. The Martin Torsion V-Plow features a spring-loaded suspension system that allows the plow to rise and fall with fluctuations in belt tension and travel, sweeping away any fugitive material before it can reach the pulley.
To complete the containment system, technicians also installed an integrated air cleaner, which contains a suction blower, filtering elements and a filter cleaning system. Instead of a centrally located unit connected to dust generation points via ductwork, the Martin Air Cleaner is incorporated into the dust generation point itself. The particles are not extracted, but are instead collected within the enclosure and periodically discharged back into the material stream.
Results
The results were immediately apparent. “We’ve gone from an everyday battle with this conveyor to almost no clean-up at all,” said Maita. “Now we have a guy go down there with a broom every few days, that’s it.”
Coeur Rochester is currently evaluating five additional conveyor areas for its next upgrade, with a plan currently under development to address those locations. “We’re extremely happy with the system,” Maita concluded. “The installation was well done, and the guys were very professional and safety-conscious. It’s changed a nightmare into an extremely functional system that operates at a high level.”
